Vibro-Flow 20

Precision Feed Solutions Tailored for Vibro® Filtration

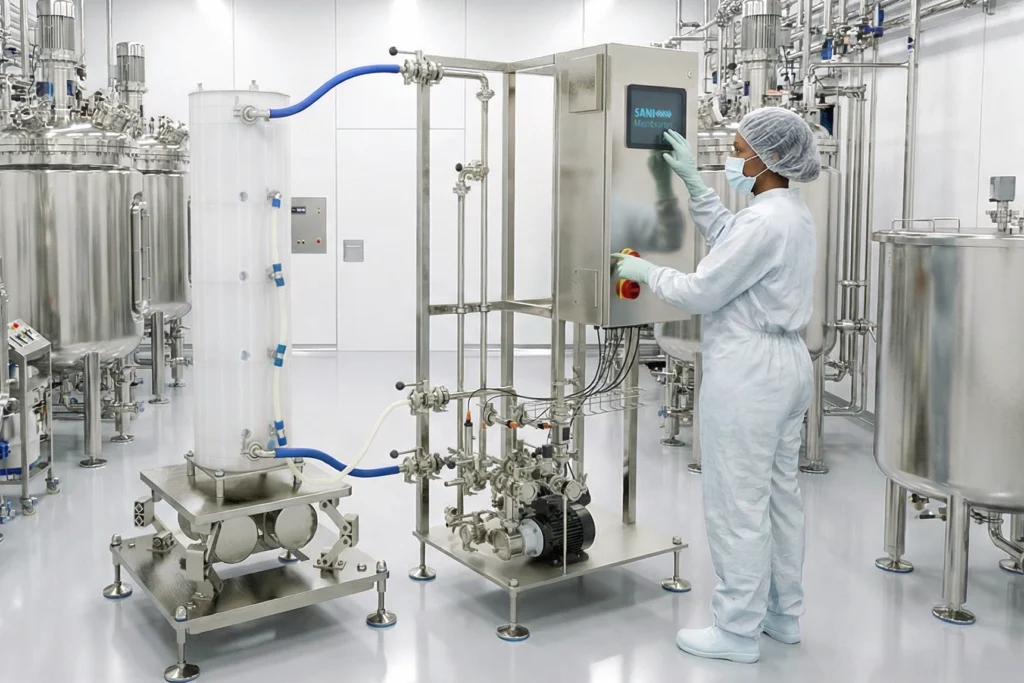

Product image of an industrial-size Vibro filtration unit by Sani Membranes connected to its matching feed system

Three operation modes

automatic mode with permeate control

Flux or TMP controlled by permeate pump; system pressure controlled by feed pump

automatic mode without permeate control

TMP controlled by feed pump

manual mode

Direct pump and Vibro-I Drive control

process development

The Vibro-Flow 20 is a compact, stainless‑steel processing solution engineered to unlock the full potential of the patented Vibro® Membrane Filtration technology.

The system is designed for use with 10/20 m² Vibro‑I cartridge and is ideal for both process development and small‑scale manufacturing.

The system comes equipped with positive displacement feed and permeate pumps, pressure/flow/temperature monitoring, built in safety interlocks, and adjustable user alarm functions for safe and reliable operation.

Superior yield. Gentle processing.

The optional permeate control feature ensures precise regulation of either TMP or flux. By actively adjusting the permeate pump, the system maintains uniform membrane performance.

Combining low energy consumption and minimal shear impact,  the Vibro‑Flow 20 provides an optimal, reliable, and product‑friendly filtration process, perfectly suited for even the most sensitive media.

Specifications

Weight140 kg
Compatible Equipment
Vibro-I Drive with 10 or 20 m² cartridge
Feed PumpImpeller pump
Permeate PumpPeristaltic Pump
Data Logging & AlarmsStores approx. 800 data points
Alarm log stores latest 25 alarms
USB Key included for backup

Feed Temperature & Pressure Limits

0 – 4 bar(g)
5 – 35 °C
0 – 3 bar(g)35 – 55 °C
0 – 1 bar(g)55 – 80 °C

*High level alarms and interlocks protect against overpressure.
**Bypass valves around impeller pumps allow for increased flow rate

Materials

Frame304 stainless steel
Piping
316L stainless steel
Media ContactFood-grade

Instrumentation

RetentateFlow / conductivity / pressure
PermeateFlow / conductivity / pressure
FeedPressure / temperature

Liquid Connections

Triclamp K50.5Feed inlet & outlet to Vibro-I unit
Retentate outlet & inlet from Vibro-I unit
Permeate outlet & inlet to Vibro-I unit
Feed drain
½” Hose barb connectionVent pipe

Electrical Connections

Power SupplyCEE plug, 5-pin (3P+N+PE; N not used), 16 A, 400V
Output to Vibro-I Drive7-pin industrial connector
Technical drawing of a Vibro-Flow 20 feed system for Vibro-I 10m2 and 20m2.
Technical drawing of a Vibro-Flow 20 feed system for Vibro-I 10m2 and 20m2.
