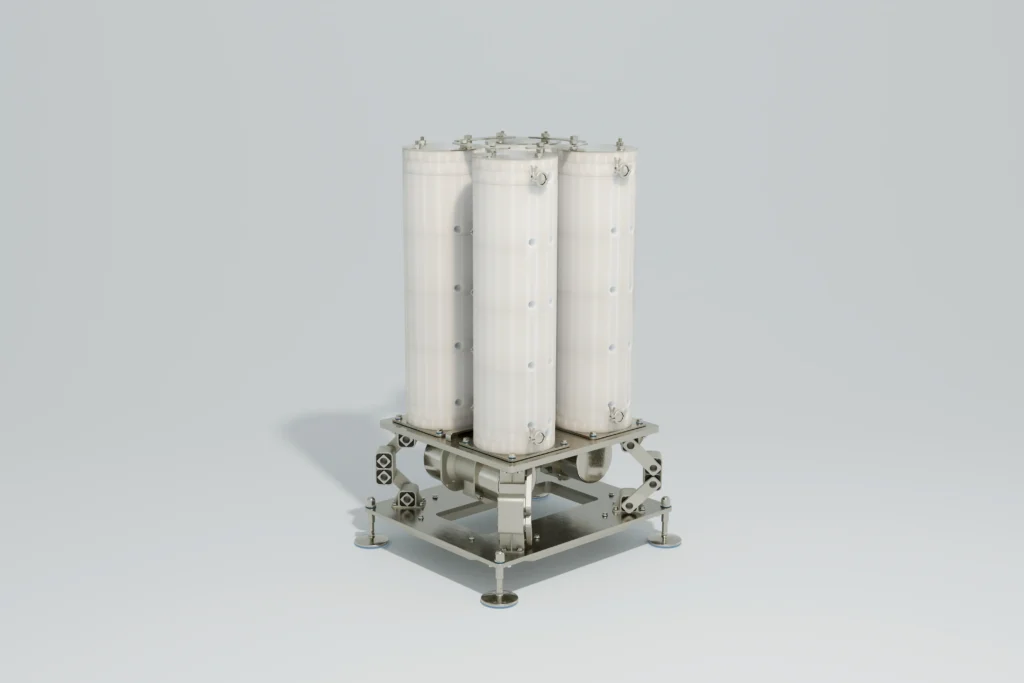

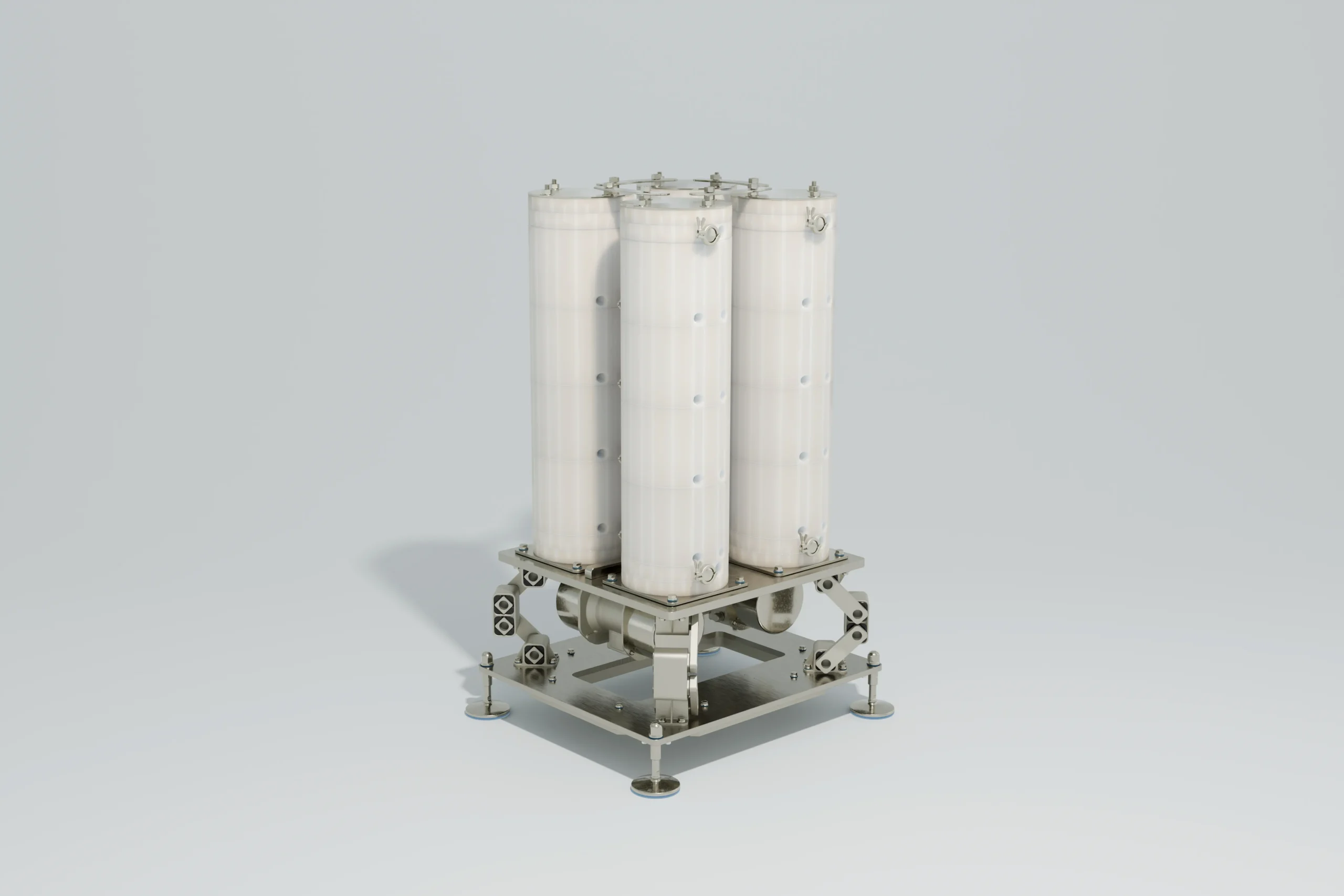

Vibro-I 40 m²

Industrial Ultra- & Microfiltration

Configurable membrane

From 1 kDa UF to 1.2 µm MF

Membrane area

40 m²

From experimental work to full-scale manufacturing

Vibro-I is engineered for seamless scale-up across pilot and production operations. The platform bridges development trials, process optimization, and industrial deployment with a modular design that supports membrane areas from 2.5 m² up to 80 m² per standalone unit. Vibro-I enables anything from small pilot campaigns to high-throughput production systems, with flexible configurations in series or parallel, batch or continuous operation. Systems can be expanded with multiple units as needed, providing the scalability, configurability, and process flexibility required to adapt, intensify, and optimize filtration performance as your process evolves.

Superior yield. Gentle processing.

The unique process control enables a low,
uniform and controllable TMP, delivering
superior recovery and high transmission of
target molecules, where the gentle product
handling makes it possible to reach very high
concentrations and viscosities without
compromising product quality.

Vibro-I 40 m² Drive

Mechanical Specifications

Weight without cartridge≈ 279 kg
Weight with cartridge≈ 591 kg
Power supply requirements400 VAC, 50 Hz, 3140 W
Noise level< 70 dB

Vibro-I 10 m² Cartridge*

*The Vibro-I 40 m2 uses 4 x 10 m2 cartridges

Mechanical Specifications

Membrane area40 m² (4 x 10 m²)
Internal retentate volume70 L
Internal permeate volume11.2 L
DrainableYes
Interface connectionsFeed/Retentate: Triclamp K50.5
Permeate: ∅12 mm (OD) Push-In or Mini-Triclamp
Media contact materialsFDA, USP VI (configuration dependent)

Operational Range

Min/max pressure0 – 4 bar(g) (temp. dependent)
pH range1 – 13 (membrane dependent)
Temperature range5 – 80 °C
Viscosity range1 – 1000 cP

Resources and Downloads

Vibro-I – Product SheetDownload
Vibro-I – User ManualDownload
