Vibro-Lab280

Benchtop Ultra- & Microfiltration
100 mL – 4000 mL
Available for rent

A lab assistant operating a Vibro-Lab280 setup with Watson Marlow pumps

ideal feed volume

100 mL – 4000 mL

Configurable membrane

From 1 kDa UF to 1.2 µm MF

Membrane area

280 cm²

Accelerate process development

The Vibro-Lab280 is built for benchtop process development, bridging the gap between early trials and advanced studies. With 1 or 2 cartridges, it meets diverse project needs and supports a wide span of working volumes for flexible experimentation.

Superior yield. Gentle processing.

The unique process control enables a low, uniform and controllable TMP, delivering superior recovery and high transmission of target molecules, where the gentle product handling makes it possible to reach very high concentrations and viscosities without compromising product quality.

Vibro-Lab280 Drive

Mechanical Specifications

Weight12.7 kg + damper steel base 8.4 kg
Power consumption40 W
Noise level< 60 dBA
Product drawing of a Vibro-Lab280's drive dimensions

Vibro-Lab280 Cartridge

Mechanical Specifications

Membrane area280 cm²
Internal retentate volume70 mL
Internal permeate volume7 mL
DrainableYes
Media contact materialsPolypropylene, EPDM, Stainless steel., Polyurethane, biobased polymer.

Operational Range

Operating pressure0 -2 bar(g) (temp. dependent)
pH range1 – 13 (membrane dependent)
Temperature range5 – 55 °C
Viscosity range1 – 1000 cP

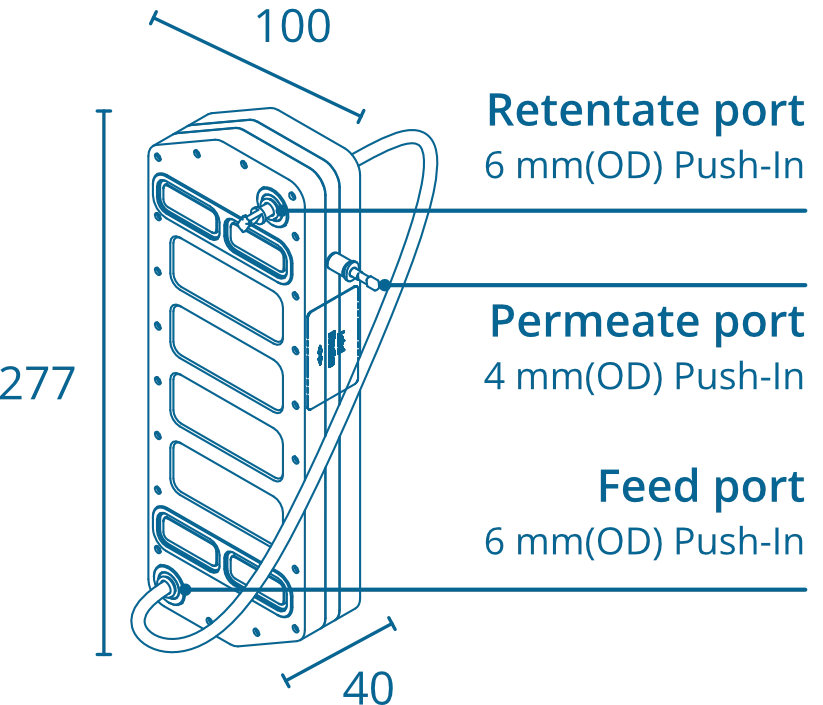

Product drawing of a Vibro-Lab280 cartridge including ports

Resources and Downloads

Vibro-Lab280 – Product SheetDownload
Vibro-Lab280 – User ManualDownload
