Algae

SANI Membranes is a trusted partner for filtration processes in the algae industry

The Vibro® technology makes it possible to optimize several separation processes within the algae industry. Centrifuges, hollow fibers, ceramic membranes and other separation techniques can be replaced.

$

Harvest to high concentration – Replaces complex separators

$

Reusable permeate – Cell free permeate

$

Gentle product handling – Ideal for fragile algae

$

Eliminating manual work – Fully automated

$

Minimal energy consumption – Up to 95% energy reduction

Algae Harvesting

Request Quotation

Filtration of algae

In algae manufacturing and processing, filtration plays a crucial role in harvest and concentration. However, with an efficient filtration solution, you can streamline multiple processes including bulk harvesting, thickening, and dewatering into a single operation. By replacing various methods, such as flotation, gravity sedimentation, and centrifuging, you can significantly improve productivitity and reduce costs.

A cutting-edge filtration solution can also effectively handle tasks like separating algae debris and protien, as well as concentrating protein content. With algae being utilized in diverse industries – from biofuel and fish feed to pharmaceuticals and human food – there’s a growing demand for efficient production methods.

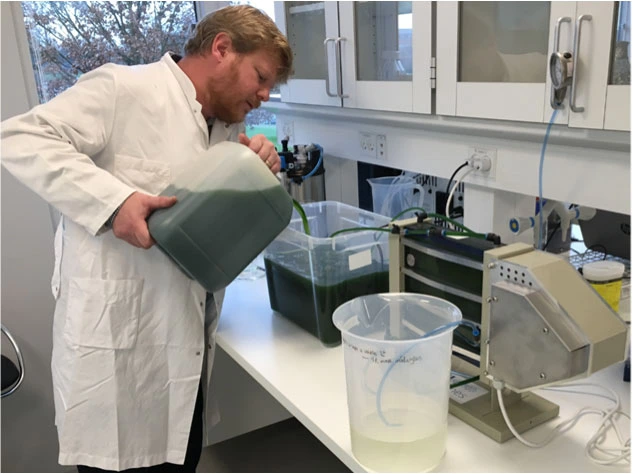

Whether you’re launching a new production facility, conducting laboratory experiments with algae, or scaling up your production operations, we’re here to assist you. Contact us today to explore how our advanced filtration solutions can optimize your algae manufacturing processes.

Access our Downloads and presentations to delve deeper into our capabilities and offerings

The Vibro® Technology is ideal for the following separation steps:

Harvest and concentration of microalgae:

The Vibro® technology makes it possible to achieve a high concentration of algae due to the open and clean design of the Free Flow plates. The technology is easy to access and can be used all the way from harvest of autotrophic algae with re-use of the water to high concentration.

Examples of achievements:

  • Nannochloropsis up to 190 g/l
  • Chlorella up to 290 g/l

Separation of algae debris and protein:

The Vibro® technology makes it possible to do an efficient separation of algae debris (after lysis) and protein due to the ultralow and uniform TMP which makes actual microfiltration possible.



Read more about algae processing in the algae presentation under downloads & presentations

Concentration of protein:

The Vibro® technology makes it possible to concentrate protein to very high concentrations due to the open and clean design of the Free Flow plates.

The Vibro® technology creates the following benefits

Reduced product shear:

With the Vibro® Technology, turbulence comes from vibrations rather than from a crossflow pump. This reduces product shear to a bear minimum, as well as making it ideal for handling of fragile algae.

Reduced energy consumption:

As the Vibro® Units do not need a crossflow pump, energy consumption can be reduced by up to 95%.

Actual continuous microfiltration:

With the Vibro® Technology, it is possible to do actual microfiltration, due to the low and uniform TMP.

High concentrations, viscosities and solid loads:

Vibro® technology is ideal for membrane filtration of highly concentrated media due to the Free Flow Plate module design with open free flow channels and no spacers.

Industrial Example:

The Vibro® technology is in the following example applied for algae harvest and concentration.

Description:

Algae culture from a pond or a photo bioreactor is processed continuously or as batch with plug flow through a Vibro-I preconcentration system where up to 98 % of the water is removed as sterile permeate. Water can be returned directly to the pond or reactor – often with improved growth as nutrients are kept intact in the permeate.

In the shown example, the algae concentrate from the preconcentration system is further concentrated in two Vibro-I units operated with mix flow (read more about mix flow – gently mixing of the algae concentrate in the units).

The algae harvest is operated continuously, making it possible to operate the pond or reactor at the optimal exponential growth curve. The system continuously produces a highly concentrated product at 11 l/h from a feed stream of 6500 l/h.

Value adding processing and Heterotrophic Algae processes

Further value adding processing, high-end fractionation of homogenized algae concentrate, buffer exchange, and recovery of target molecules in permeate can be performed according to the application at hand. One of the relevant processes is described under Biotech.

Algae harvest
Protein concentration

From lab scale to production, we serve you all the way

Vibro-Lab35P w/o membrane module
Vibro-Lab35P

Process development with extremely low volumes

Vibro-Lab280
Vibro-Lab280

Can be equipped with 1 or 2 x 280 cm² cartridges

Vibro-Lab3500 membrane filtration unit
Vibro-Lab3500

Improved process development – transparent and scalable

Vibro-I unit
Vibro-I

Membrane filtration with optimal process control

Vibro-I Feed System with Vibro-I
Vibro-I Feed System

Easy to plug and play feed system for Vibro-I units
