Vibro Filtration is a unique membrane filtration technology for continuous microfiltration and ultrafiltration
When using Vibro filtration, you get an easy-to-use technology that fits membranes of all pore sizes and is easy to setup and use
SANI Membranes is the inventor of the Vibro® Technology. A unique membrane filtration technology used for microfiltration and ultrafiltration in numerous diverse applications.
The technology is characterized by its unique advantages that include the ability to achieve higher yields and reach concentrations than with conventional technologies. Additionally, Vibro® Filtration facilitates easier process development, due to the technology being directly scalable, meaning that you are ensured that the results you achieve in the laboratory will be the same as the ones you achieve in a full scale production.
Applications
Algae
Biotech/pharma
Dairy & Liquid Food
Improving membrane filtration
SANI Membranes is Danish cleantech company, and the inventor of the innovative Free Flow Plate™ Technology and the disruptive Vibro™ Filtration.
Higher Yield
Vibro Filtration ensures a continuous high transmission of molecules, leading to a yield increase of up to 25%, compared to conventional technologies
Sharper Separation
Vibro™ Filtration has no pressure loss, as there is no cross flow pump. This means that you have a uniform TMP and a uniform cutoff over the entire membrane surface, ultimately giving you a sharper cutoff and a sharper separation.
Better Recovery
The Free Flow Plate™ modules are fully drainable of both permeate and retentate. This means that up to 100% of your product can be recovered.
Higher Viscosities and
Solid Load Concentrations
The design of the Free Flow Plate™ modules with open free flow channels and no spacers, enables filtration of much higher viscosities and solid load concentrations.
Gentler Product Handling
Elimination of the cross flow pump means Vibro™ Technology handles media very gently, making it possible to retain soft cells without inflicting any cell damage.
Sanitary
With Vibro™ technology, fouling starts later on flat surfaces and is easier to remove when formed. This means CIP time is reduced and less chemicals are needed for cleaning.

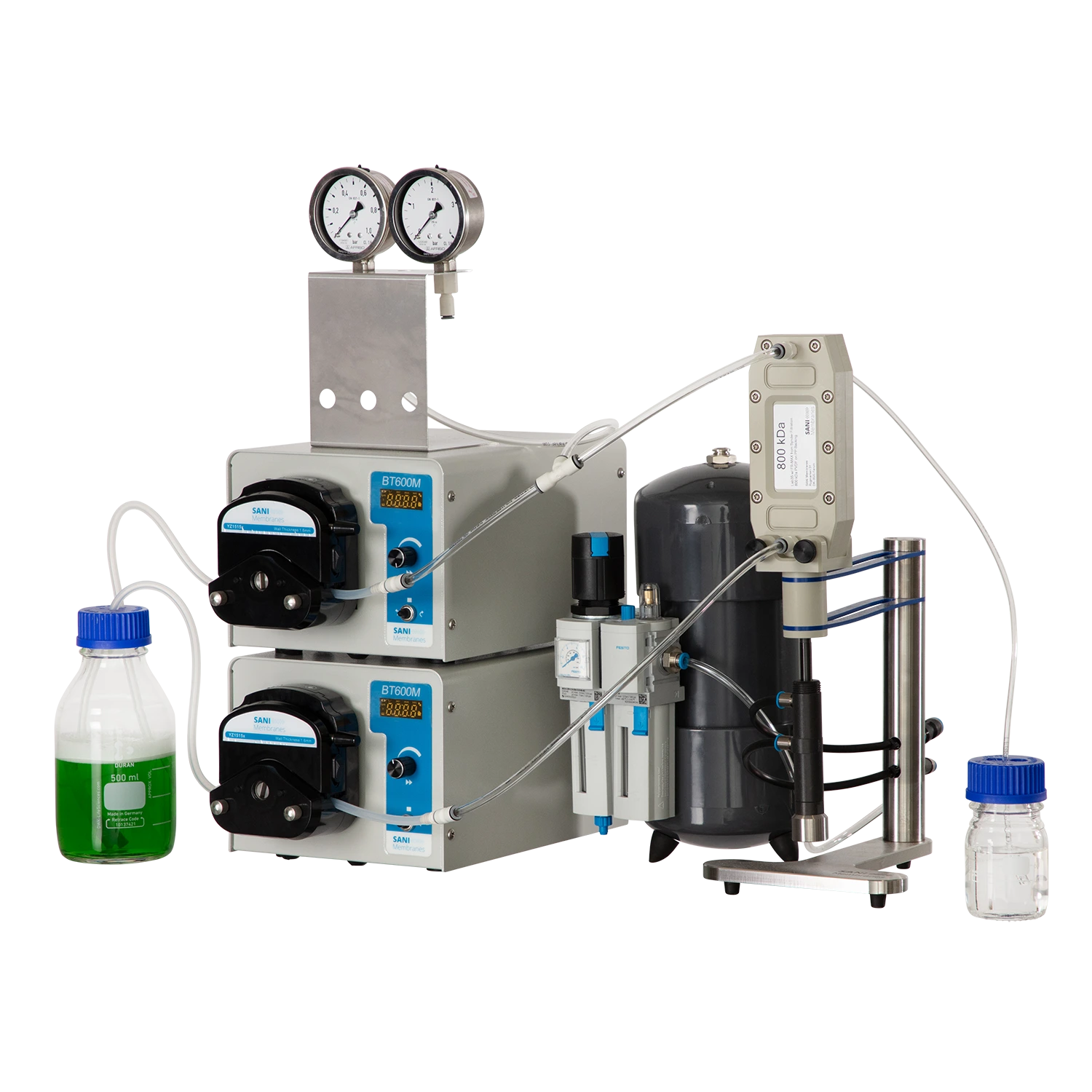

Vibro-Lab35P
35 cm² membrane surface area
Process development with extremely low volumes
Scalable continuous membrane filtration
The Vibro-Lab35P improves process development of continuous microfiltration/ultrafiltration since the system is scalable to large industrial units.
Small feed volumes
The Vibro-Lab35P allows you to do continuous filtration with down to 50 mL feed as the retentate dead volume is only 8 mL.
Easy to understand
The Vibro-Lab35P reduces the complexity of membrane filtration due to the patented Vibro® technology and the Free Flow plates.
Vibro-Lab280
Can be equipped with 1 or 2 cartridges of 280 cm² membrane surface area
Superior flexibility and ideal for small bioreactors and laboratories
Superior recovery
With Vibro® Technology, you can recover up to 100% of API due to the fully drainable membrane modules.
Faster process development
The Vibro-Lab280 is the ideal solution for benchtop filtration and process development. The unit fits 1 or 2 cartridges, giving you a large span in working volume to work with.
Easy setup
The reduced complexity with Vibro® filtration makes it simple to setup and connect as the crossflow pump is redundant and cooling not needed./p>
Vibro-Lab3500
3500 cm² membrane surface area
Improved process development – transparent and scalable
Easy to understand and use
The Vibro-Lab3500 reduces the complexity of membrane filtration due to the patented Vibro® Technology and Free Flow Plates.
Improved process development
The Vibro-Lab3500 is the ideal equipment for process development and membrane screening. The see-through housing makes it possible to observe all membrane area during process and cleaning.
Easy setup
The reduced complexity with Vibro® Filtration makes it simple to setup and connect as the crossflow pump is redundant and cooling not needed.
Vibro-I
2.5 m², 10 m², 20 m², 40 m² or 80 m² membrane surface area
Industrial membrane filtration with optimal process control
Optimal separation with extremely low pressure
The Vibro® Technology makes it possible to run the separation with 100% uniform and extremely low TMP. Thus, improving separation and making actual microfiltration possible.
Perfect for food and pharmaceutical production
All engineering solutions are sanitary and all parts in media contact are in FDA / EC 1935/2004 compliant materials.
Energy consumption reduced by up to 95 %
The Vibro® Technology makes the crossflow pump redundant and as a result, the energy requirements for pumping and cooling are reduced.
Vibro-I Feed System
Feed system for Pilots and small scale
Vibro-I systems
Easy to use – Plug and play feed system
The Vibro-I Feed System with intuitive controls and datalogging is delivered on a frame and can easily be connected to a Vibro-I.
Suitable for food and pharma production
All engineering solutions are sanitary and all parts in media contact are in FDA / EC 1935/2004 compliant materials.
Small footprint and movable
The Vibro-I Feed System can be used in any lab due to the small footprint. Furthermore, the system is on wheels.
